Rotary Union Maintenance Checklist: 10 Steps to Longer Seal Life

Most rotary union failures are preventable — and the fix is usually cheap. Misalignment, missing lubrication, dirty media and ignored leaks account for the majority of premature seal failures in the field. This checklist gives your maintenance team 10 concrete steps to extend rotary union life, plus the failure signs that mean a rebuild is due.

Print it, post it at the machine, and run through it on every planned stop. It takes ten minutes and buys months of seal life.

The Snapshot

Alignment is #1: side load kills seals faster than anything else.
Lubricate the seal cavity per the manufacturer schedule — a few drops a month.
Filter the media: clean air and coolant multiply seal life.
Catch leaks early: a worn seal costs a kit; an ignored one costs a rotor.
Keep a seal kit on the shelf for every critical union.

Why Maintenance Matters

A rotary union is a wear part by design — the seal faces wear, and that is normal. What is not normal is wearing them out in weeks instead of years. The difference is almost always one of the 10 items below. Maintenance is cheap; the downtime from a failed union on a critical machine is not — a spindle teardown or a dryer shutdown costs hours of production.

The 10-Step Checklist

Check alignment quarterly. Dial-indicate the shaft axis against the machine axis; correct anything beyond 0.1 mm. Misalignment is the #1 seal killer.
Verify flexible connections. The supply hose must flex, not transmit pipe load into the union. Replace rigid or strained connections.
Lubricate the seal cavity. Follow the schedule — typically 3-5 drops of oil per month via the oiler or grease port. Dry seals die fast.
Inspect for leaks. Look for drips, wet seal areas, or pressure loss. A small seep is a warning; a steady drip means rebuild now.
Check the media filter. Dirty air, coolant or oil carries grit into the seal faces. Service the strainer or filter on schedule.
Monitor temperature. A hot housing means excess friction — check lubrication and alignment before the seal fails.
Listen for noise. Chattering or vibration signals a dry or misaligned seal face. Investigate, don't ignore.
Confirm pressure is within rating. Spikes above the rated pressure lift seal faces. Install a relief valve if spikes occur.
Log seal life per union. When you know the typical interval, schedule the rebuild on a planned stop instead of on failure.
Stock the seal kit. For every critical union, keep a kit on the shelf with the torque spec. A 30-minute field rebuild beats days of downtime.

Signs of Impending Failure

Visible leakage at the shaft or housing — the most obvious sign.
Pressure drop at the point of use with the supply valve open.
Overheating housing — seal friction is rising.
Vibration or chattering during rotation.
Increased torque when turning the shaft by hand.
Contaminated media downstream (oil in air lines, or vice versa) — internal seal failure.

Catch any of these early and a seal kit fixes it. Ignore them and the rotor scores, the housing wears, and you buy a whole union.

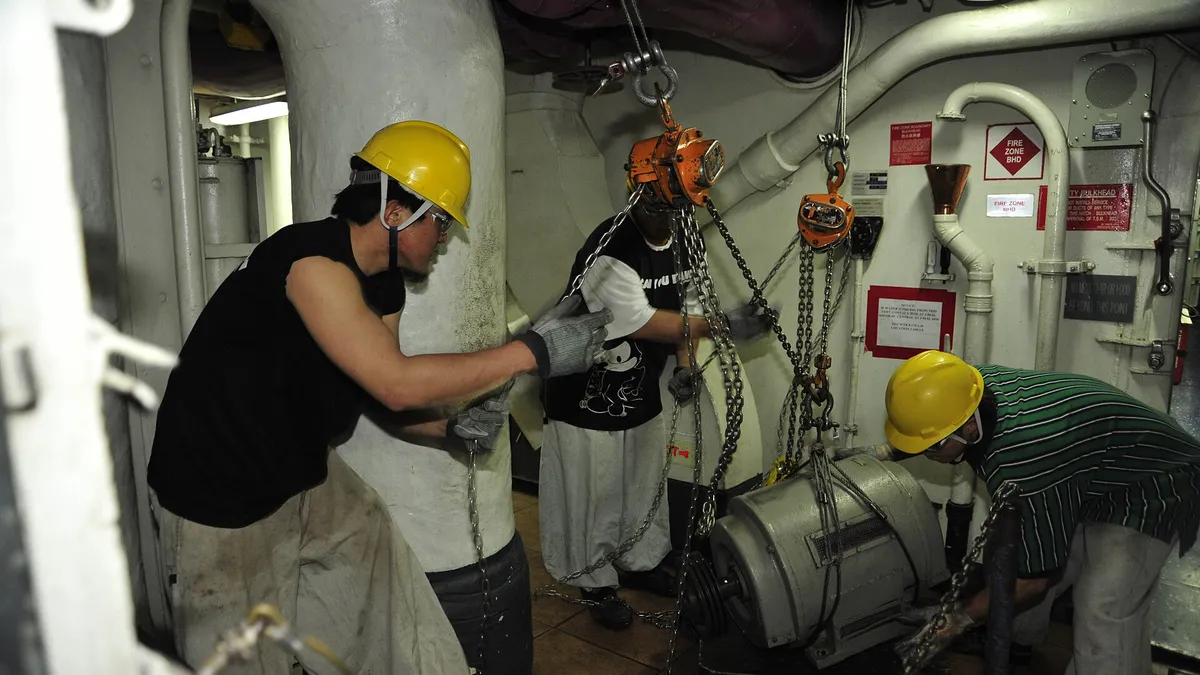

Technicians in hard hats rigging a chain hoist to service machinery in an engine room

Seal Kits & Rebuilds

A seal kit contains the carbon faces, O-rings, springs and gaskets needed for a full rebuild — typically 10-20% of the union price. The rebuild procedure: remove the union, clean the seal cavity, replace all wear parts, torque the seal stack to spec, and pressure-test before re-installation.

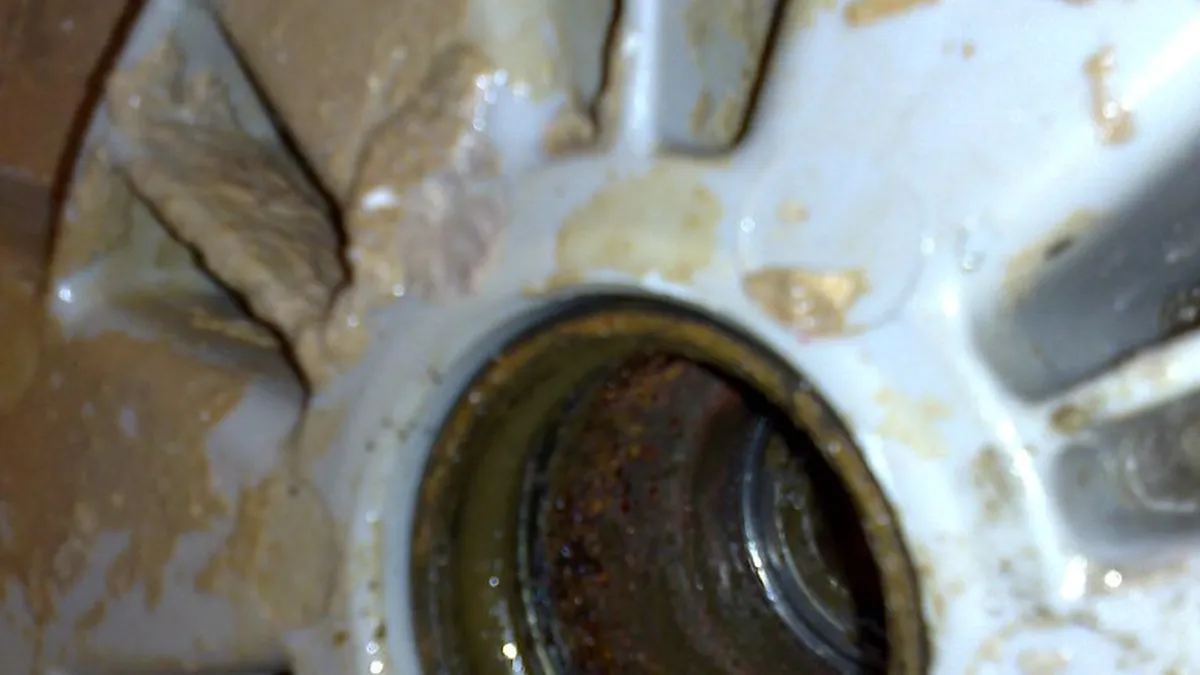

Grease-packed spoked bearing hub shown during lubrication maintenance

Order the seal kit at the same time you buy the union, so it is on the shelf when needed. For plants with many unions, standardizing on one supplier's kits simplifies inventory — one kit per model covers every machine using that model.

Maintenance Schedule by Duty

General automation (air, 8h/day): inspect monthly, lubricate quarterly, rebuild every 2-3 years.
Machine tools (coolant, high speed): inspect weekly, lubricate monthly, rebuild every 1-2 years.
Steam duty (dryers, 24/7): inspect weekly, check condensate daily, rebuild every 6-18 months.
Hydraulic (heavy duty): inspect monthly, check oil filtration weekly, rebuild every 1-3 years.

Adjust to your actual duty — the log from step 9 tells you your real interval.

Quick Answers

How often should I lubricate a rotary union?

Typically every 1-3 months, 3-5 drops via the oiler. Check the manufacturer schedule for your model.

How long does a rotary union last?

8,000-15,000 hours is typical with good maintenance; much less with misalignment or dirty media.

Can I rebuild a rotary union myself?

Yes — with the seal kit and torque spec, most unions rebuild in 30-60 minutes. Pressure-test before re-installation.

What kills rotary union seals fastest?

Misalignment (side load), running dry, and contaminated media. All three are preventable with this checklist.
